Products
YAWATA H-600 (For Metal to Metal Heavy Abrasion & Sand Abrasion)
Classification : DIN 8555 : E 3-UM-600
Approvals : TIS

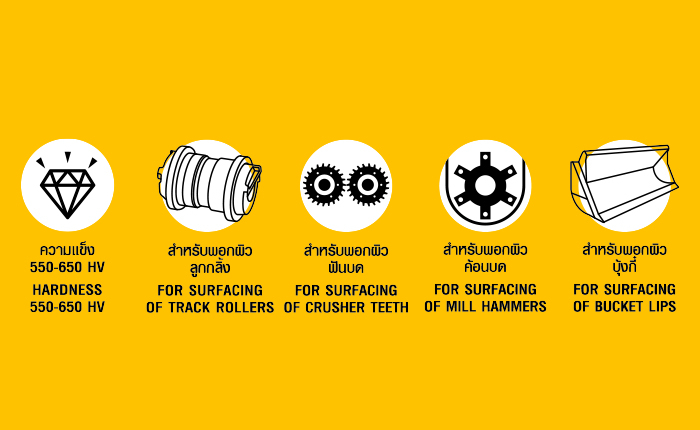

Applications : Surfacing of track rollers, crusher teeth, mill hammers and bucket lips.
YAWATA H-600 is a hardfacing type electrode for surfacing worn parts of civil engineering, construction and mining machinery to be used without machining. Deposited metal of about 600 Vickers hardness and martensitic structure provides high toughness in spite of high hardness and excellent abrasion resistance to medium impact.
DIN 8555 : E 3-UM-600
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Mo
|
|
|
Req.
|
0.03-1.00
|
≤1.50
|
≤3.00
|
≤0.030
|
≤0.030
|
≤5.00
|
≤1.50
|
|
Typ.
|
0.40
|
0.37
|
1.15
|
0.010
|
0.008
|
4.65
|
0.53
|
Typ. = Typical results
N.S. = Not Specified
|
Vicker(Hv)
|
Rockwell C (HRC)
|
Shore
|
Heat Treatment
|
|
624
|
56
|
75
|
As welded;preheat, interpass 150๐C
|
|
606
|
55
|
74
|
Tempered at 500๐C
|
|
442
|
45
|
59
|
Tempered at 600๐C
|
| Diameter /Length (mm) |
3.2/350 | 4.0/350 | 5.0/350 | |
| Welding position | Current (A) | |||
| V | 90-130 | 140-190 | 170-240 | |
| F | 80-120 | 110-170 | - | |
1. Use dry electrodes only. Damp electrodes should be re-dried at 300～350℃ for 60 minutes before use.
2. Preheating at more than 150℃ is required.
3. A buffer layer with low hydrogen electrode is required to surface hardening metal or to deposit multiple layers.
2. Preheating at more than 150℃ is required.
3. A buffer layer with low hydrogen electrode is required to surface hardening metal or to deposit multiple layers.
Related industries
Mining & Sugar
Mining & Sugar
