YAWATA V-1000 (For Severe Earth & Sand Abrasion)
Classification : DIN 8555 : E 10-UM-60R
Approvals : TIS

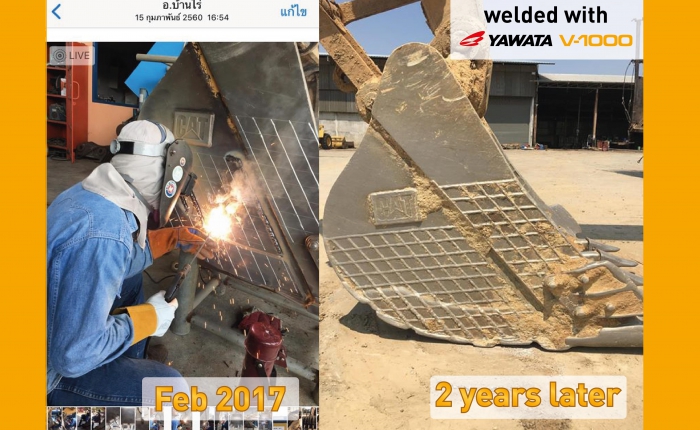

Applications : Surfacing of cutter knives, shovel teeth, coal cutters and parts in petrochemistry.
YAWATA V-1000 is a heavy-coated rutile type electrode for highly wear resistant overlaying on parts subject to frictional abrasion. Not suitable for impact conditions. Clean and smooth bead appearance with minimal undercutting. Approximately 160% recovery. Machinable by grinding only.
DIN 8555 : E 10-UM-60R
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
|
|
Req.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
|
Typ.
|
2.50
|
0.70
|
1.00
|
0.013
|
0.005
|
33.20
|
Typ. = Typical results
N.S. = Not Specified
|
Vicker(Hv)
|
Rockwell C (HRC)
|
Shore
|
Heat treatment
|
|
650-750
|
58-62
|
78-85
|
As welded; preheat, interpass 350๐C
|
| Diameter /Length (mm) |
3.2/350 | 4.0/400 | 5.0/450 | |
| Welding position | Current (A) | |||
| F, V | 120-140 | 170-190 | 220-250 | |
1. Use dry electrodes only. Damp electrodes should be re-dried at 300～350℃ for 60 minutes before use.
2. Preheating at more than 300℃ and postheating at 600℃ are required.
3. Chequered or rib-run reinforcement surfacing should be applied.
2. Preheating at more than 300℃ and postheating at 600℃ are required.
3. Chequered or rib-run reinforcement surfacing should be applied.
