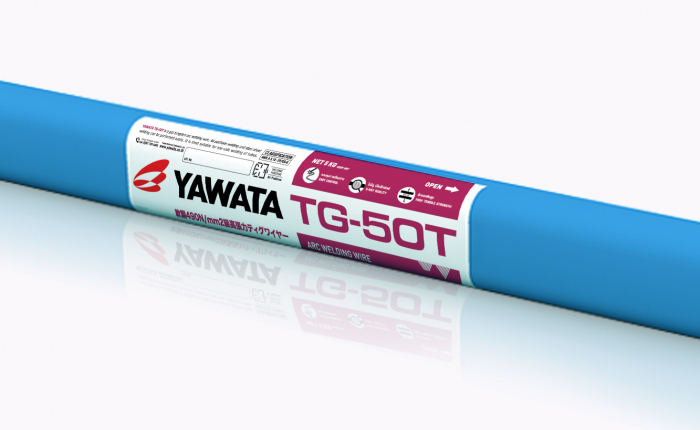

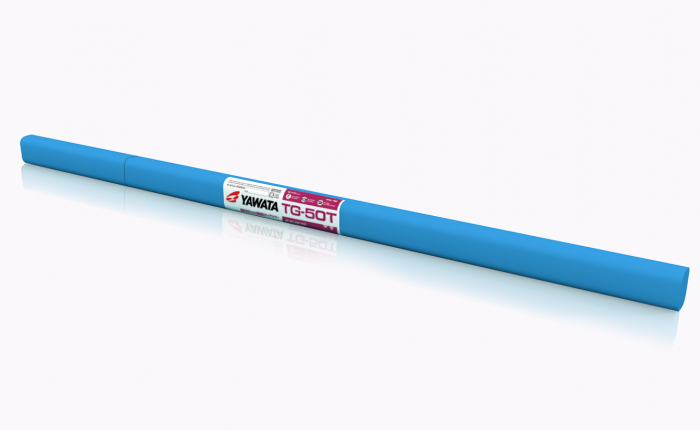

YAWATA TG-50T (For Mild Steel & 490 N/mm2 High Tensile Steel)
Classification : AWS A 5.18 : ER70S-G
Approvals : -
Applications : Welding of mild steel, 490 N/mm2 high tensile steel and aluminium-killed steel for low temperature use. Its tensile strength after long time postweld heat treatment is high enough for 490 N/mm2.
YAWATA TG 50T is a gas tungsten arc welding wire. All positions welding and steel sheet welding can be performed easily. It is most suitable for one-side welding of tubes.
AWS A 5.18 : ER70S-G
JIS Z 3316 : YGT50
JIS Z 3316 : YGT50
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Mo
|
Ni
|
V
|
Cu
|
|
|
Req.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
|
Typ.
|
0.10
|
0.82
|
1.55
|
0.011
|
0.012
|
XX
|
XX
|
XX
|
XX
|
XX
|
Typ. = Typical results
N.S. = Not Specified
C.L. = Combined Limit for Mn + Ni + Cr + Mo + V
| Tensile Strength N/mm2 (kgf/mm2) |
Yield Strength N/mm2 (kgf/mm2) |
Elongation % |
Charpy 2V-notch J (kgf.m) |
||
| at -20๐C | at -40๐C | ||||
| Req. | ≥430 | ≥430 | XX | XX | XX |
| Typ. | 580 | 440 | 31 | 260 | 89 |
| Diameter | 1.6 | 2.0 | 2.4 | 3.2 | 5.0/350 |
| Length | 1000 | ||||
