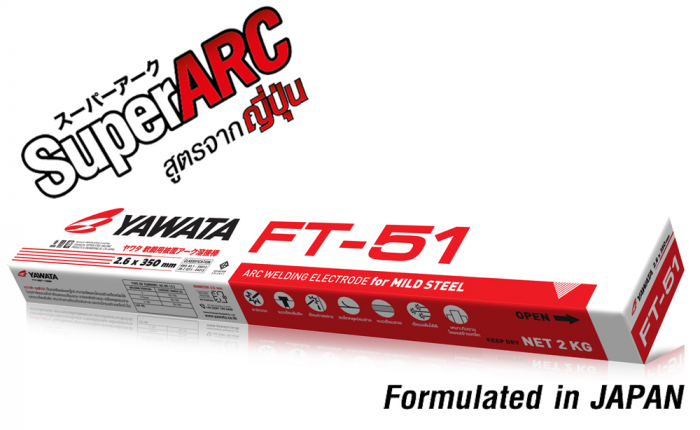

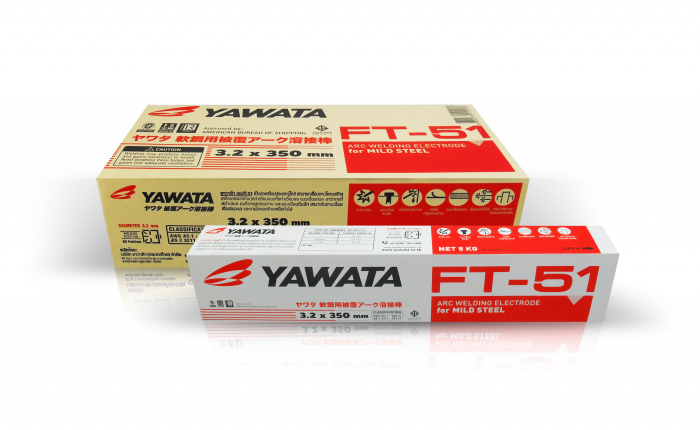

YAWATA FT-51 (For Mild Steel)
Classification : AWS A 5.1 : E6013, JIS Z 3211 : E4313
Approvals : ABS, BV, DNV GL, LR, TIS

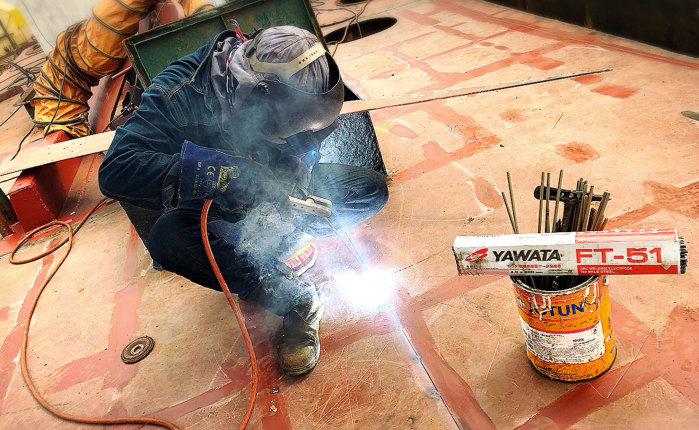

Applications : Welding of mild steel sheet for ships, rolling-stocks, structures, and finished welding of heavy structural works.
PDFYawata-Pamphlet-FT51.pdf
YAWATA FT-51 is a high rutile type electrode for all positions welding and assures easy operation even in vertical downward position. Spatters are less and bead appearance is beautiful.
AWS A 5.1 : E6013
JIS Z 3211 : E4313
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Mo
|
Ni
|
V
|
C.L.
|
|
|
Req.
|
≤0.20
|
≤1.00
|
≤1.20
|
N.S.
|
N.S.
|
≤0.20
|
≤0.30
|
≤0.30
|
≤0.08
|
N.S.
|
|
Typ.
|
0.09
|
0.34
|
0.40
|
0.013
|
0.011
|
0.06
|
0.01
|
0.06
|
0.02
|
0.50
|
Typ. = Typical results
N.S. = Not Specified
C.L. = Combined Limit for Mn + Ni + Cr + Mo + V
| Tensile Strength N/mm2 (kgf/mm2) |
Yield Strength N/mm2 (kgf/mm2) |
Elongation % |
Charpy 2V-notch at 0๐C, J (kgf.m) |
|
| Req. | ≥430 (42) | ≥430 (42) | ≥17 | N.S. (AWS A5.1) ≥47 (ISO 2560-A) |
| Typ. | 510 | 460 | 28 | 60 |

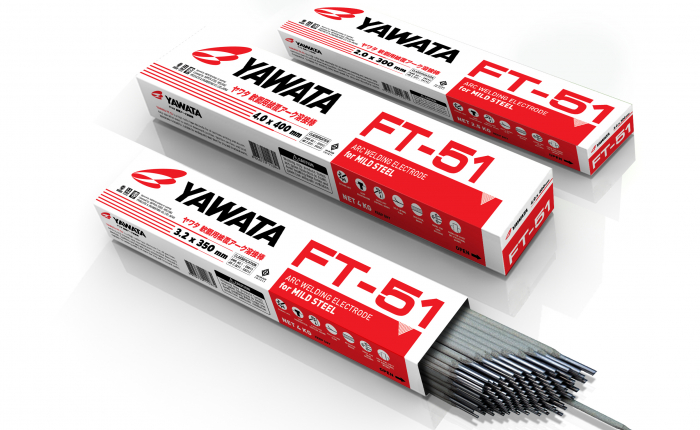

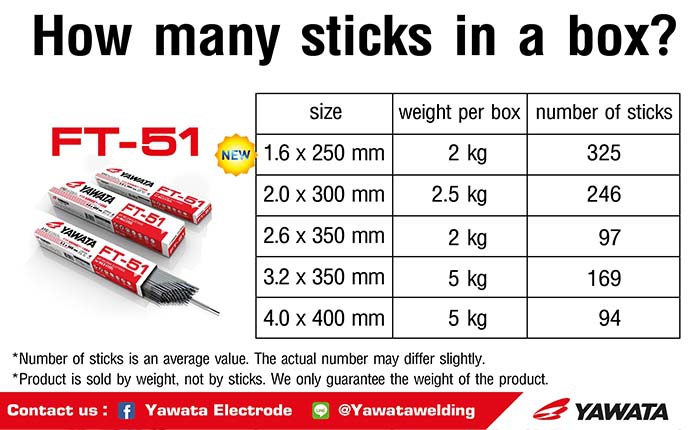

| Diameter/Length (mm) | 1.6/250 | 2.0/300 | 2.6/350 | 3.2/350 | 4.0/4000 | 5.0/400 |
| Welding position | Current (A) | |||||
| F | 20-50 | 30-70 | 50-100 | 70-130 | 110-180 | 140-220 |
| V-down | 20-50 | 30-70 | 50-100 | 70-130 | 110-180 | 150-220 |
| V, OH | 20-50 | 30-70 | 50-100 | 70-130 | 100-150 | 130-190 |
1. Use dry electrodes only.
2. If coating flux absorbs excessive moisture, arc and slag fluidity become unstable, spatters increase, undercuts and blowholes are apt to occur. Damp electrodes should be re-dried at 70～120℃ for 60 minutes.
3. For inclined and vertical downward positions, touch electrode tip lightly to the base metal and deposit a stringer bead with electrode slope 40～80°.
2. If coating flux absorbs excessive moisture, arc and slag fluidity become unstable, spatters increase, undercuts and blowholes are apt to occur. Damp electrodes should be re-dried at 70～120℃ for 60 minutes.
3. For inclined and vertical downward positions, touch electrode tip lightly to the base metal and deposit a stringer bead with electrode slope 40～80°.
