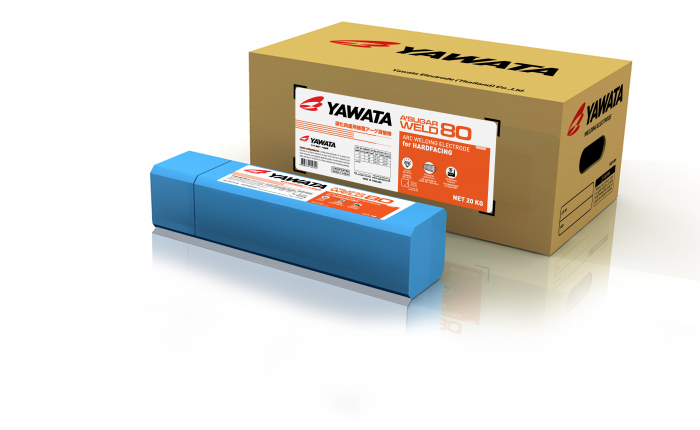

YAWATA A'SUGAR WELD 80 (For Sugar Mill)
Classification : DIN 8555 :E 10-UM-60
Approvals : TIS
Applications : A’SUGAR WELD 80 precess of surface treatment of sugar mill feed rolls is the depositing of wear-resistant cane gripping globular points or protrusions onto the sides and tips of roll teeth on a three-rollifeed and crushing assembly.
prev
next
Property
Req. = Requirement
Typ. = Typical results
N.S. = Not Specified
Mechanical Properties
Recommended Size and Power Range
Recommendations for Use
YAWATA A’SUGAR WELD 80 is a high alloy electrode which is designed to maintain a constant self-regulating arc for the bonding of the hard metal globules to the cast iron roll in the presence of sucrose juice and cane fibre. These conditions are normally considered to the distinctly unfavourable for obtaining a rough bond between high alloy carbide deposits and grey iron.
Classification
DIN 8555 :E 10-UM-60
Chemical Composition|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
|
|
Req.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
N.S.
|
|
Typ.
|
3.80
|
1.39
|
1.50
|
0.013
|
0.004
|
26.80
|
Typ. = Typical results
N.S. = Not Specified
|
Vicker(Hv)
|
Rockwell C (HRC)
|
|
600-700
|
56-60
|
| Diameter /Length (mm) |
3.2/350 | 4.0/400 | 5.0/450 | |
| Welding position | Current (A) | |||
| F, V | 100-140 | 140-180 | 180-240 | |
Use dry electrodes only. Damp electrodes should be re-dried at 300～350℃ for 60 minutes before use.
