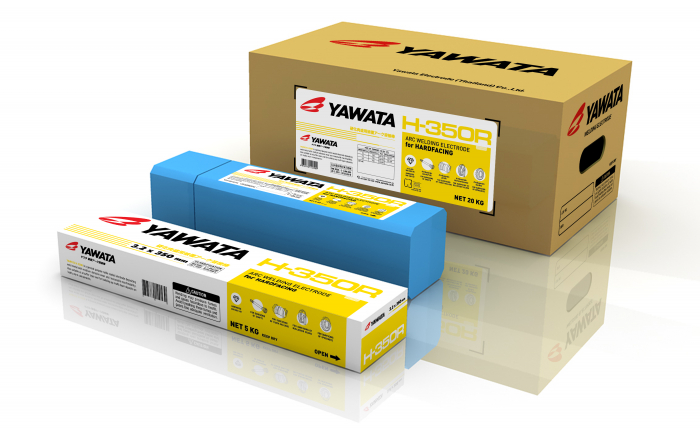

YAWATA H-350R (For Metal to Metal & Sand Abrasion)
Classification : DIN 8555 : E 1-UM-350
Approvals : TIS

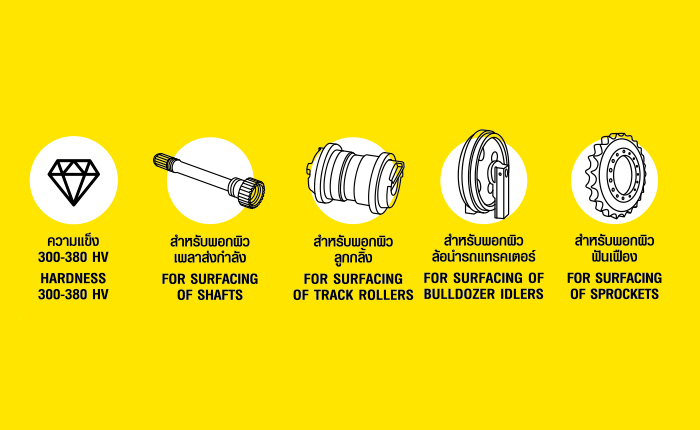

Applications : Surfacing of shafts, rollers and bulldozer idlers and sprockets.
YAWATA H-350R is a general purpose rutile coated hardfacing electrode depositing a tough chromium manganese alloy weld metal sufficiently hard to resist serious deformation under fairly heavy impact and rolling loads, yet with good resistance to medium abrasive wear. Recommended for hardfacing applications where maximum hardness consistent with reasonable machinability is required. Also suitable as a buffer layer and for building up multi-layer deposits on badly worn components.
DIN 8555 : E 1-UM-350
|
C
|
Si
|
Mn
|
Cr
|
Cr+Mn+Mo+Ni
|
|
|
Req.
|
≤0.40
|
N.S.
|
N.S.
|
N.S.
|
≤5.0
|
|
Typ.
|
0.18
|
0.29
|
1.12
|
1.35
|
3.04
|
Typ. = Typical results
N.S. = Not Specified
|
Vicker(Hv)
|
Rockwell C (HRC)
|
(As-welded)
|
|
320
|
32
|
Single layer
|
|
350
|
35
|
Multiple layer
|
| Diameter /Length (mm) |
3.2/350 | 4.0/400 | 5.0/450 | |
| Welding position | Current (A) | |||
| V | 90-125 | 140-180 | 170-240 | |
| F | 90-115 | 120-150 | - | |
1. Use dry electrodes only. Damp electrodes should be re-dried at 70～120℃ for 60 minutes before use.
2. Preheating at more than 150℃ is required to surface low alloy steels, high carbon steels, etc.
2. Preheating at more than 150℃ is required to surface low alloy steels, high carbon steels, etc.
